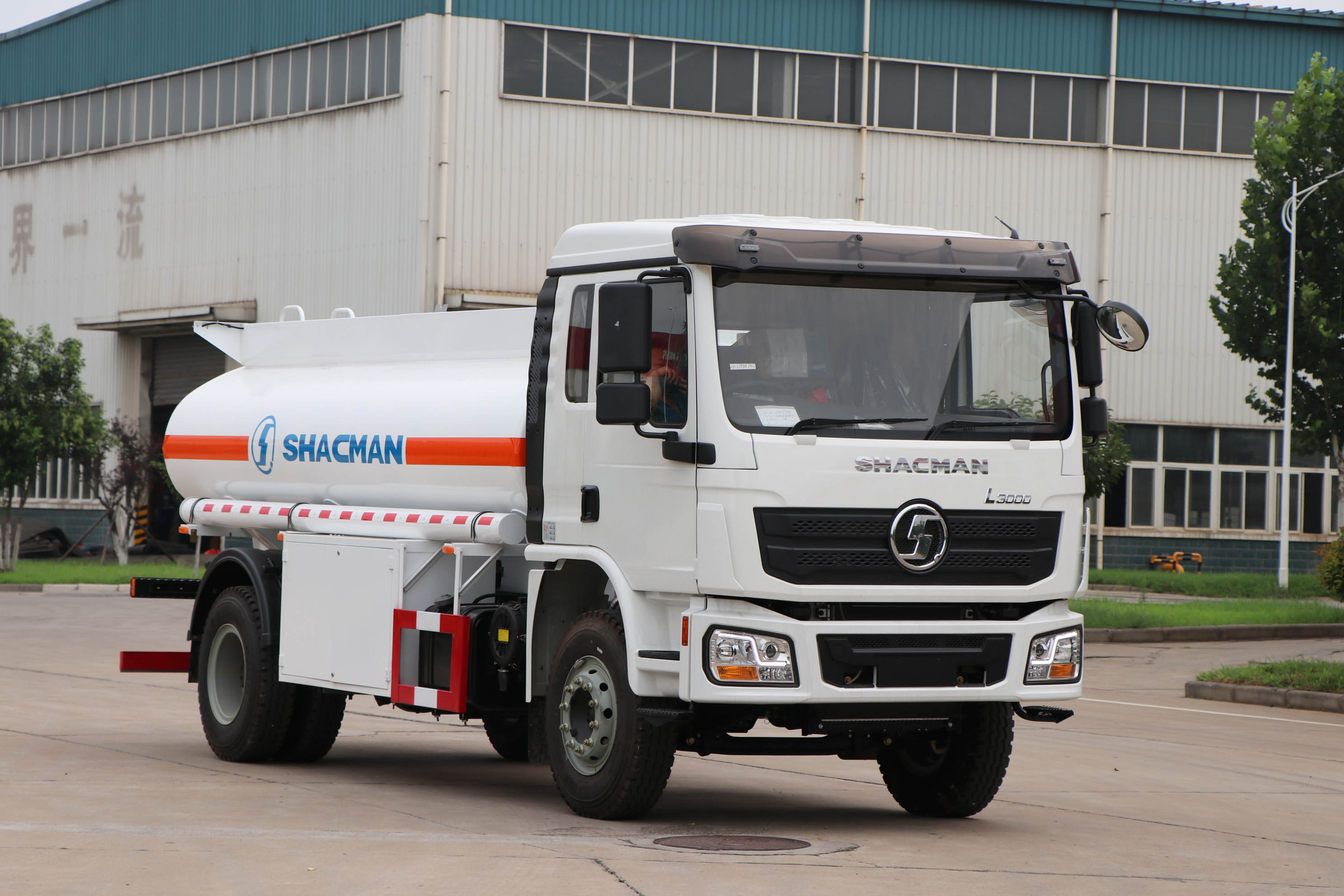

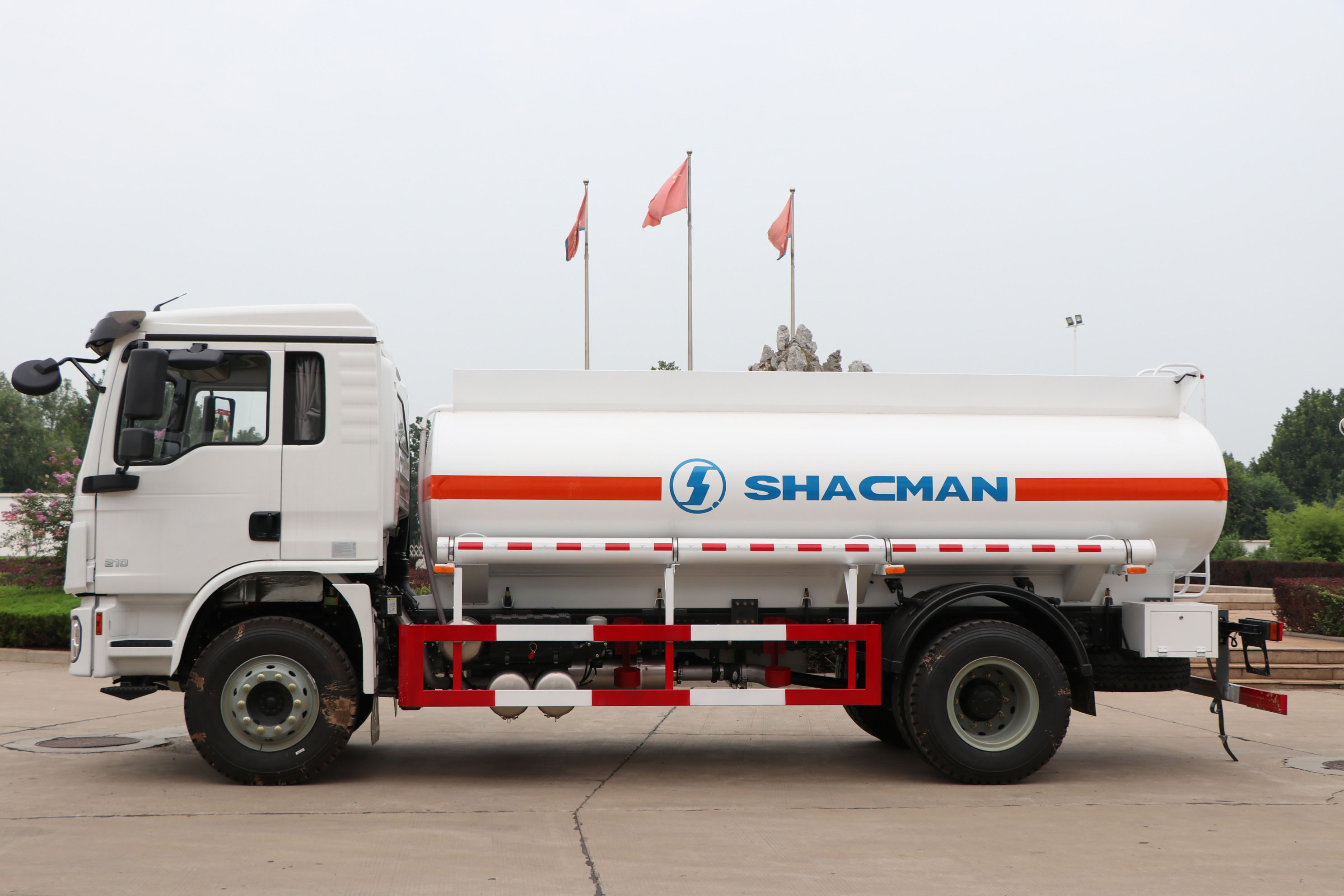

L3000 oil tanker truck

Short Description:

The oil tanker has a solid and well-sealed tank body, which is mostly made of high-quality steel to ensure the safety of oil storage and prevent leakage. The tank body is usually equipped with anti-wave plates, which can reduce the impact caused by the sloshing of oil during transportation. The chassis part has a relatively strong load-bearing capacity, and when combined with a suitable power system, it can adapt to different road conditions and drive stably. The vehicle is also equipped with professional components such as oil inlet and outlet ports, breathing valves, and grounding devices to ensure the safety and smoothness of oil loading, unloading and transportation. It plays a crucial role in the fields related to oil transportation.

Product Detail

Specifications

未命名

  1. Advanced Engine Technology:
    • The L3000 tanker truck is equipped with advanced engines, such as the YC4EG series from Yuchai, which are jointly developed with Ricardo UK. These engines meet stringent emission standards (e.g., Euro V) and offer a long service life, with B10 durability exceeding 600,000 kilometers.
    • High torque output ensures robust power performance, providing efficient acceleration and climbing ability.
  2. Reliable Transmission System:
    • Matched with high-quality transmissions, such as the Fast 8JS85TE-C aluminum alloy transmission, which features a double intermediate shaft structure for high reliability.
    • The transmission adopts a fine high-tooth design and a full synchronizer, making gear shifting smooth and effortless.
  3. Enhanced Safety and Durability:
    • The brake system incorporates air dryers and oil-water separators for dual filtration, ensuring a long lifespan and reliability of the air circuit.
    • The rear axle brake specifications are Φ400×155, providing significant braking torque and excellent brake wear resistance, thereby enhancing safety.
  4. Innovative Chassis Design:
    • The chassis wiring harness is neatly bundled, with fixed brackets every 400mm, ensuring a tidy layout and avoiding interference during modifications.
    • The APU module integrates the air dryer and four-circuit protection valve, streamlining the piping layout and facilitating modifications.
  5. Efficient and Safe Operation:
    • The L3000 tanker truck is designed with an integrated superstructure and chassis, reducing the center of gravity by 150mm, improving anti-rollover capability by 9.8%, and enhancing maneuverability.
    • Equipped with features such as liquid level weighing, loading and unloading brake interlocking systems, and tire pressure monitoring systems, ensuring safe and efficient operation.
  6. High-Quality Tank Construction:
    • The tank body is welded using advanced automatic welding machines, ensuring stable welding quality, good forming, and high strength.
    • Comprehensive pre-treatment, including shot blasting and high-quality paint application, combined with thermal spray aluminum technology inside the tank, provides excellent corrosion resistance and lightweight characteristics.
  7. Compliance and Market Adaptability:
    • The L3000 tanker truck fully complies with regulatory requirements, reflecting its adherence to industry trends and ensuring its competitiveness in specialized markets.
    • With a variety of configurations and continuous product improvement, it better meets the transportation needs of end-users.

In summary, the L3000 tanker truck stands out with its advanced engine technology, reliable transmission system, enhanced safety and durability, innovative chassis design, efficient and safe operation, high-quality tank construction, and compliance with market trends. These advantages make it an ideal choice for tanker transportation needs.

Product Name

L3000 Oil Tanker Truck

Tank material

Q235 carbon steel

Tank wall thickness

tank thickness 4mm, head thickness 5mm

Tank volume

10000L

Oil pump specifications

copper gear oil pump,Explosion-proof cover, seabed valve, Φ580 manhole cover

Optional configuration

Refueling machine, automatic reel, 10m refueling hose with refueling gun.
